Manual Z Linear Stage Generic 60x60mm Aluminum Cross Roller Table

Description

Product Overview

The Manual Z Linear Stage by Generic is engineered for demanding precision‑inspection environments where micron‑level accuracy and repeatable motion are non‑negotiable. Constructed from a solid aluminum alloy frame, the stage combines a robust cross‑roller rail system with a compact 60 × 60 mm table footprint, delivering a sleek yet sturdy platform that fits into tight machine bays without sacrificing performance. The V‑shaped raceways and cylindrical rollers work in concert to minimize friction, providing a smooth glide that translates into a 10 mm travel range with a parallelism tolerance of just 0.05 mm. A load capacity of 29.4 N ensures the stage can support a variety of sensors, lenses, and tooling while maintaining true straightness throughout the motion envelope. The black anodized finish not only enhances corrosion resistance but also reduces stray light reflections, a critical factor for optical measurement setups. Designed with precision machining tolerances, the stage offers a true straightness of 29.4 N, guaranteeing that every incremental move is both predictable and repeatable.

Usage

In modern manufacturing and research facilities, the Manual Z Linear Stage finds its niche across a spectrum of applications. It excels in optical metrology stations where sub‑micron adjustments are required to align lenses, mirrors, or fiber‑optic components. The stage’s compact dimensions make it an ideal candidate for integration into CNC machine tools, enabling fine‑tuning of tool heads or workpiece positioning during high‑precision machining cycles. Test rigs that evaluate material properties or electronic components benefit from the stage’s low‑friction travel, allowing rapid yet controlled displacement without introducing mechanical hysteresis. Automation equipment, such as robotic pick‑and‑place cells, can leverage the stage for precise Z‑axis adjustments, ensuring consistent part placement and reducing cycle times. Because the stage is built from aluminum alloy, it resists thermal expansion, making it suitable for environments where temperature fluctuations could otherwise degrade positioning accuracy. Whether mounted on a vibration‑isolated optical bench or incorporated into a rugged industrial enclosure, the Manual Z Linear Stage delivers reliable performance that meets the stringent demands of precision inspection, quality control, and research laboratories.

Why Choose Us

Choosing the Manual Z Linear Stage from Generic means selecting a product backed by a commitment to engineering excellence and customer satisfaction. Our manufacturing process adheres to ISO‑9001 standards, ensuring each stage undergoes rigorous dimensional verification and functional testing before leaving the factory. The aluminum alloy construction is sourced from certified suppliers, guaranteeing material consistency and long‑term durability even under continuous operation. Our cross‑roller design is the result of decades of research into low‑friction, high‑load bearing technologies, delivering a glide experience that rivals premium‑priced alternatives while maintaining an accessible price point. We provide comprehensive technical documentation, including CAD models and mounting guidelines, to accelerate integration into your system. In addition, our after‑sales support includes a dedicated engineering hotline, rapid replacement parts, and a one‑year warranty that covers manufacturing defects. By partnering with Generic, you gain a trusted supplier that prioritizes product reliability, on‑time delivery, and responsive service—attributes that translate directly into reduced downtime and increased productivity for your operation.

Key Features

• Aluminum alloy frame provides lightweight strength and excellent thermal stability for consistent performance.
• Cross‑roller rail system ensures ultra‑smooth motion with a low coefficient of friction, reducing wear and maintenance.
• 10 mm travel range with 0.05 mm parallelism delivers precise positioning for demanding optical and machining tasks.
• 29.4 N load capacity supports a variety of sensors and tooling without compromising straightness.
• Comprehensive technical support and one‑year warranty give confidence in long‑term reliability.

FAQ

What is the maximum load the stage can support?

The Manual Z Linear Stage is rated for a maximum static load of 29.4 N, which is sufficient for most optical components, small tooling, and sensor packages used in precision inspection applications.

Can the stage be integrated into existing CNC machines?

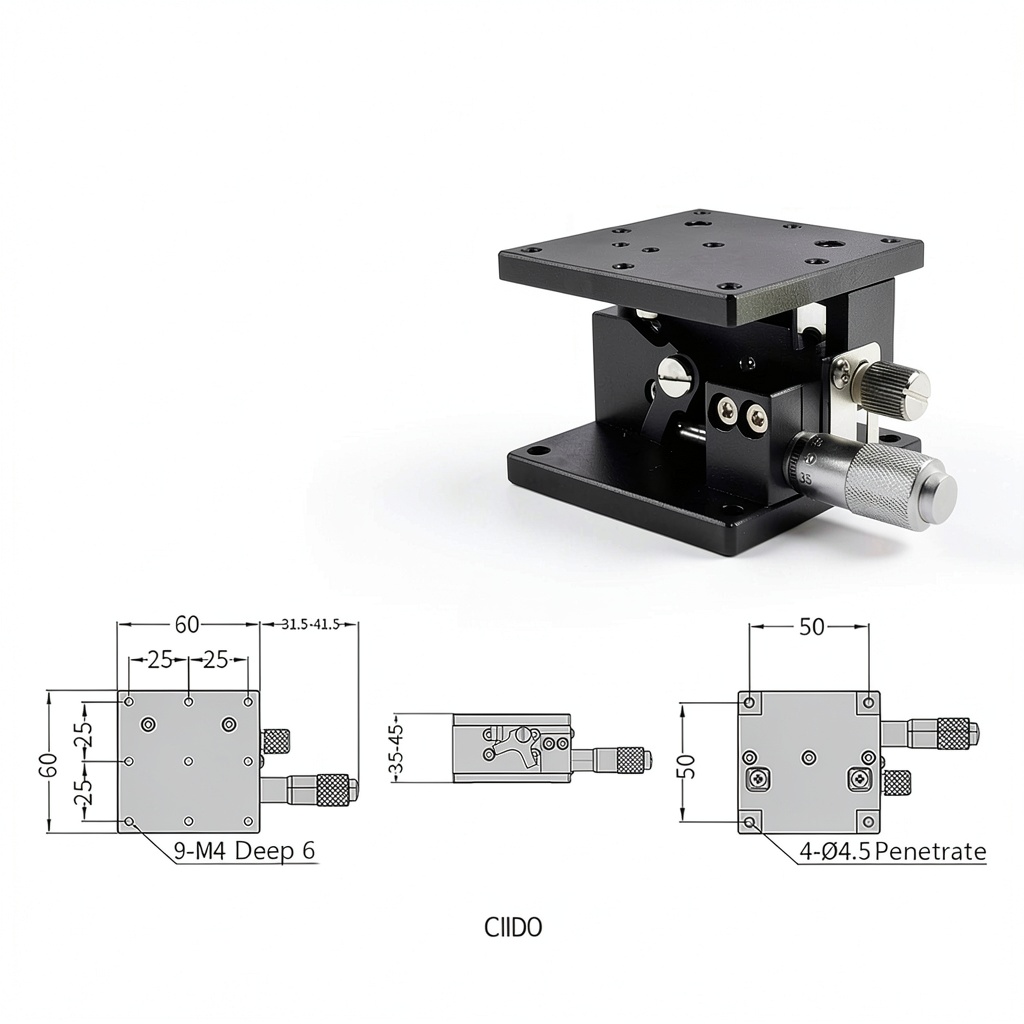

Yes. The 60 × 60 mm table size and standard mounting holes are designed to fit common CNC and automation platforms. Detailed mounting drawings are provided to simplify retrofitting.

How does the cross‑roller design improve performance?

The cross‑roller configuration uses cylindrical rollers that engage V‑shaped raceways at alternating angles, distributing load evenly and minimizing friction. This results in smoother travel, higher load capacity, and longer service life compared with traditional linear bearings.

Is the stage suitable for high‑temperature environments?

While the aluminum alloy offers good thermal conductivity, the stage is optimized for ambient to moderate temperature ranges (up to 80 °C). For extreme temperatures, additional cooling or a specialized material variant may be required.

What warranty and support options are available?

Generic provides a one‑year limited warranty covering manufacturing defects, along with access to a technical support team that can assist with installation, troubleshooting, and spare part sourcing.
