Manual Sliding Table 400mm ZFAUDAN Linear Rail with Lock Handwheel

Description

Product Overview

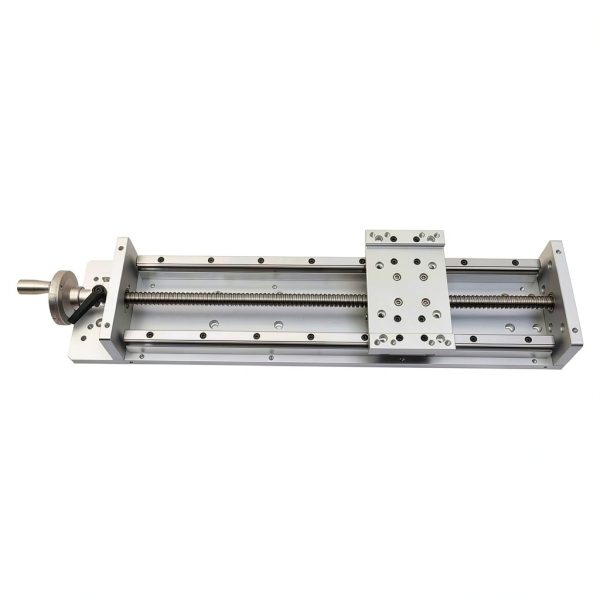

The ZFAUDAN Manual Sliding Table 400mm is engineered to provide high‑precision linear motion for a wide range of industrial applications. Constructed from aviation‑grade 6061 aluminum, the table offers an excellent strength‑to‑weight ratio, delivering a horizontal load capacity of 200 kg while maintaining a low overall mass for easy integration. The integrated ball screw (diameter 16 mm, lead 5 mm) ensures smooth, backlash‑free travel with a repeat positioning accuracy of ±0.02 mm, making it suitable for tasks that demand exact positioning over a 400 mm stroke. A lockable handwheel is included to secure the table in place during operation, enhancing safety and stability. The design follows a cross‑sliding stage configuration, allowing for both X‑ and Y‑axis movement when paired with a compatible XYZ system, expanding its versatility for multi‑axis machining and inspection setups.

Usage

This sliding table excels in environments where precise linear displacement is critical. It is commonly used in CNC machining centers for milling, drilling, and engraving operations where repeatable positioning reduces setup time and improves part consistency. In quality control laboratories, the table serves as a stable platform for optical inspection rigs, enabling fine adjustments of specimens under microscopes or vision systems. Automation engineers integrate the table into custom robotic cells, using the manual handwheel for quick adjustments during prototyping phases before transitioning to motorized actuation. The robust aluminum construction also makes the table resistant to corrosion, allowing deployment in humid or chemically active settings such as electronics assembly lines or material testing stations.

Why Choose Us

Choosing the ZFAUDAN Manual Sliding Table means selecting a product backed by rigorous engineering standards and a commitment to quality. Each table undergoes a comprehensive inspection process, including dimensional verification of the ball screw assembly, load testing of the aluminum frame, and functional checks of the lockable handwheel mechanism. ZFAUDAN provides detailed technical documentation and responsive customer support, ensuring that integration challenges are addressed promptly. The modular SKU options—TH16‑200mm, TH16‑400mm, and TH20‑400mm—allow customers to select the exact size and thread configuration needed for their specific application, reducing inventory complexity and cost. Additionally, the table’s design emphasizes ease of maintenance; the ball screw can be accessed without disassembly, and replacement parts are readily available through ZFAUDAN’s authorized distribution network.

Key Features

• High‑strength 6061 aluminum frame supports up to 200 kg horizontal load for heavy‑duty tasks.
• Precision ball screw (16 mm × 5 mm) delivers smooth travel and ±0.02 mm repeatability.

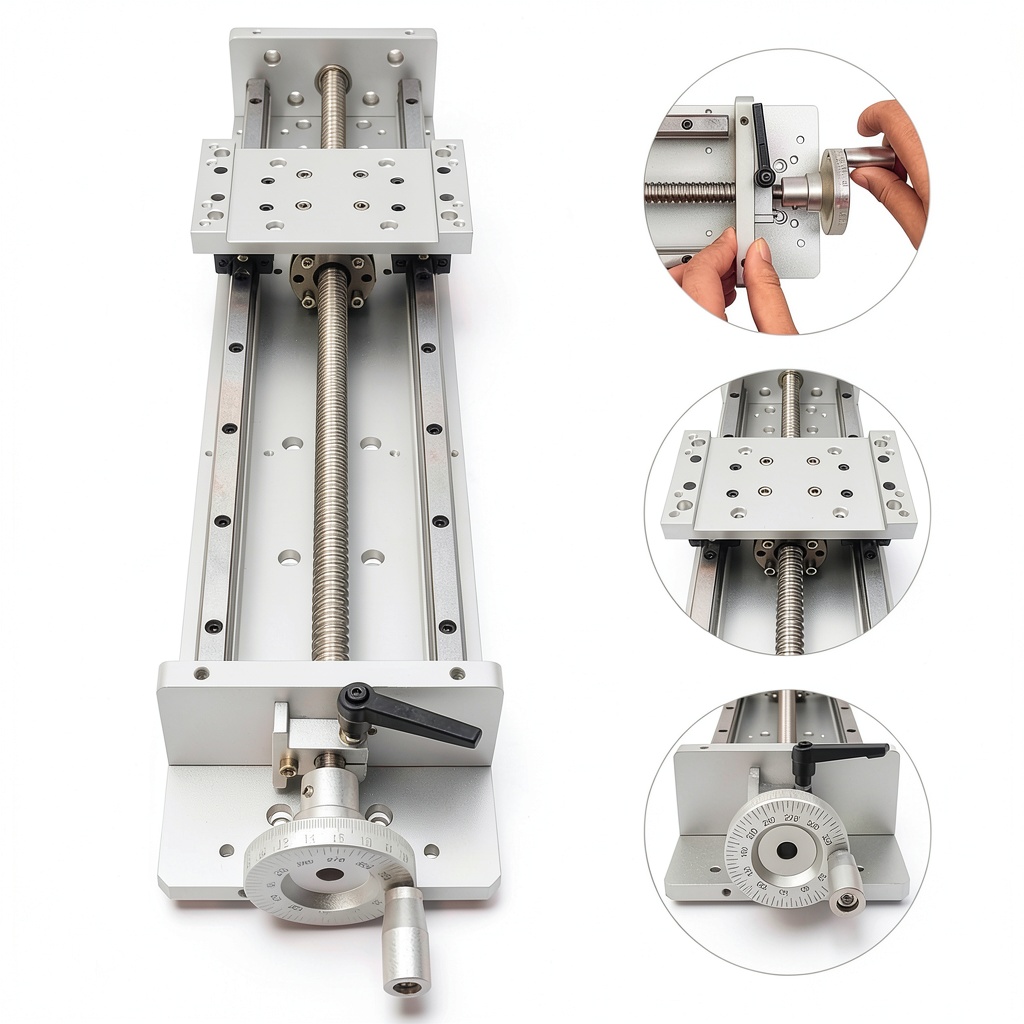

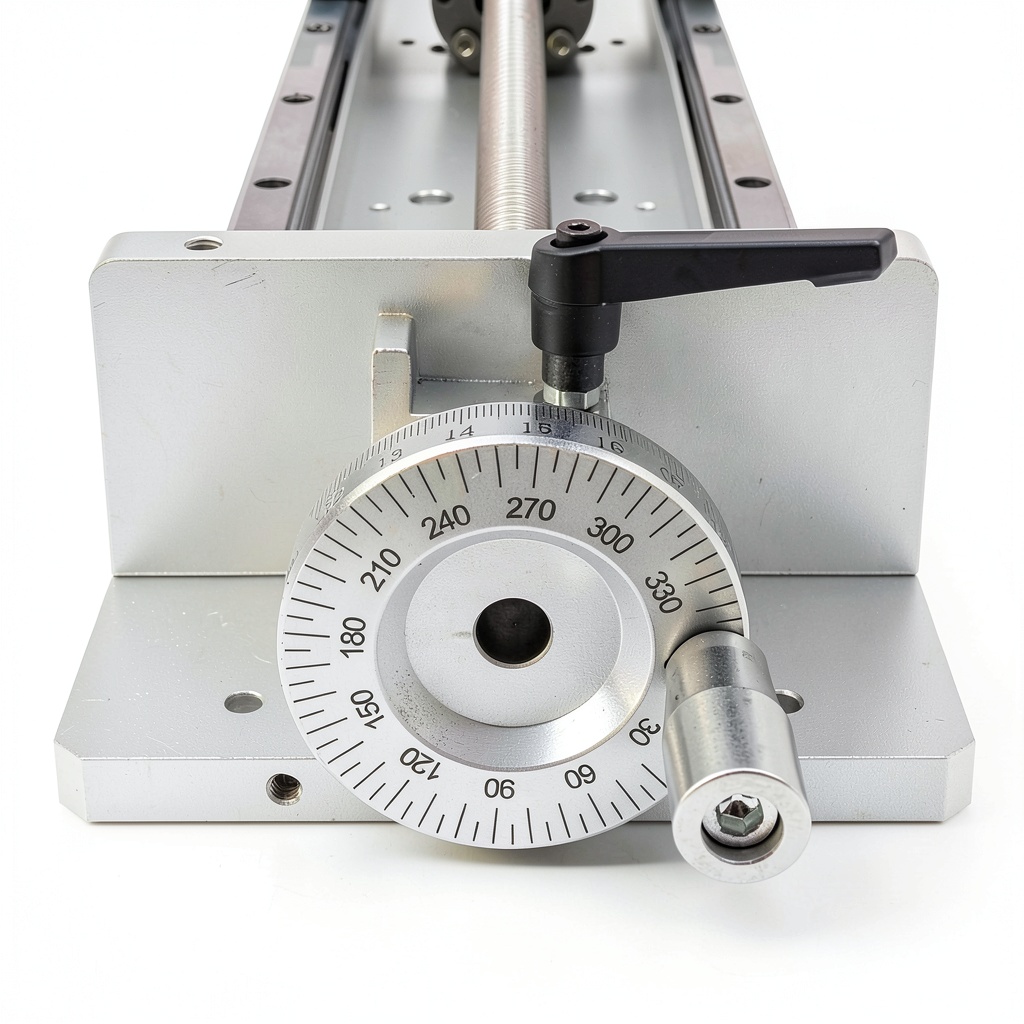

• Lockable handwheel provides secure positioning, enhancing safety during manual adjustments.
• Modular size options (200 mm and 400 mm strokes) enable customization for diverse machine footprints.
• Dedicated after‑sales support and easy‑access spare parts ensure long‑term reliability.

FAQ

What load can the sliding table handle?

The table is rated for a maximum horizontal load of 200 kg and a vertical load of 50 kg, making it suitable for most medium‑size industrial tooling.

Is a motor required for operation?

No motor is required for basic operation; the included handwheel allows manual positioning. However, the design can accommodate a stepper motor base if automated motion is desired.

How do I ensure repeatable positioning?

Repeatability is achieved through the high‑precision ball screw (c7 accuracy) and the lockable handwheel, which together maintain positioning within ±0.02 mm over repeated cycles.

Can the table be used in a humid environment?

Yes. The 6061 aluminum construction is corrosion‑resistant, and the sealed ball screw protects internal components from moisture, allowing reliable operation in humid or mildly corrosive settings.

What accessories are included?

The package contains one electric sliding table, one hand wheel, and one lock mechanism. Optional accessories such as a stepper motor base can be purchased separately to enable motorized control.
