Description
Product Overview

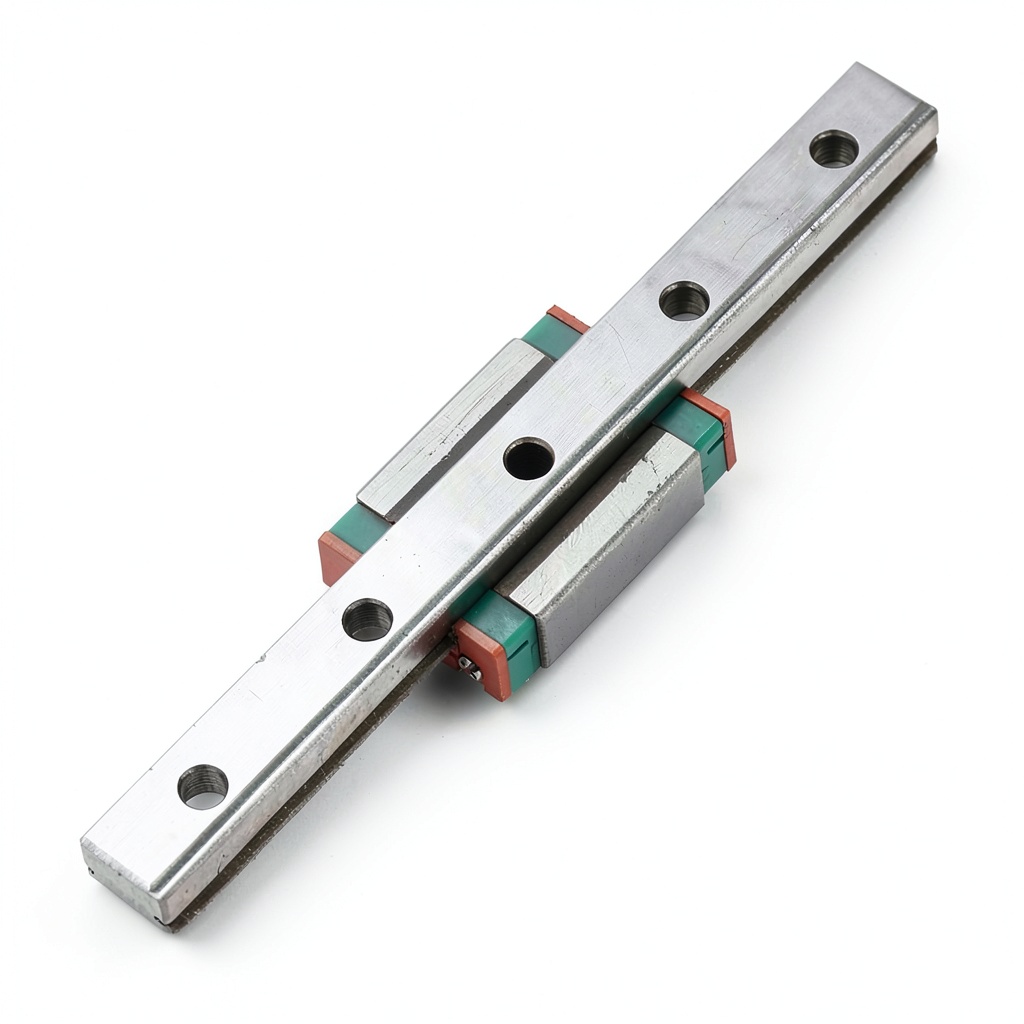

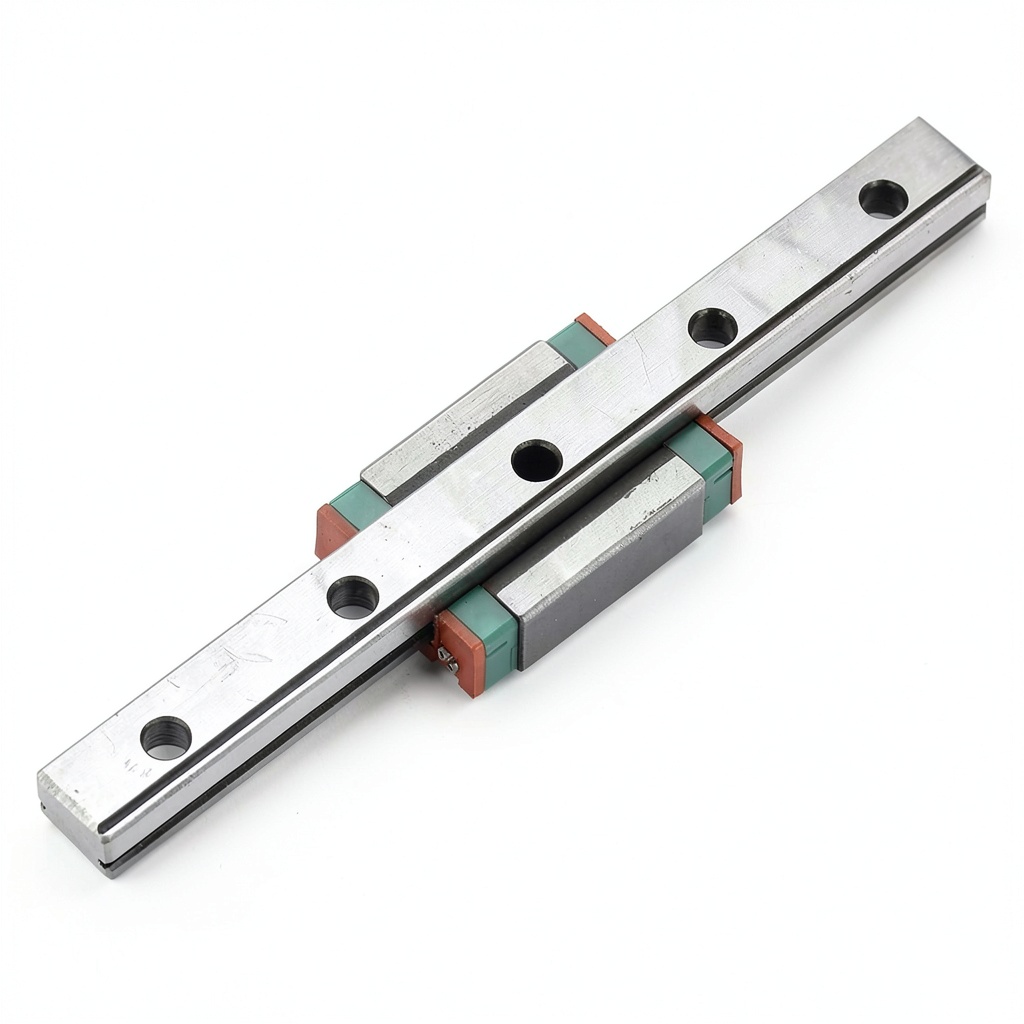

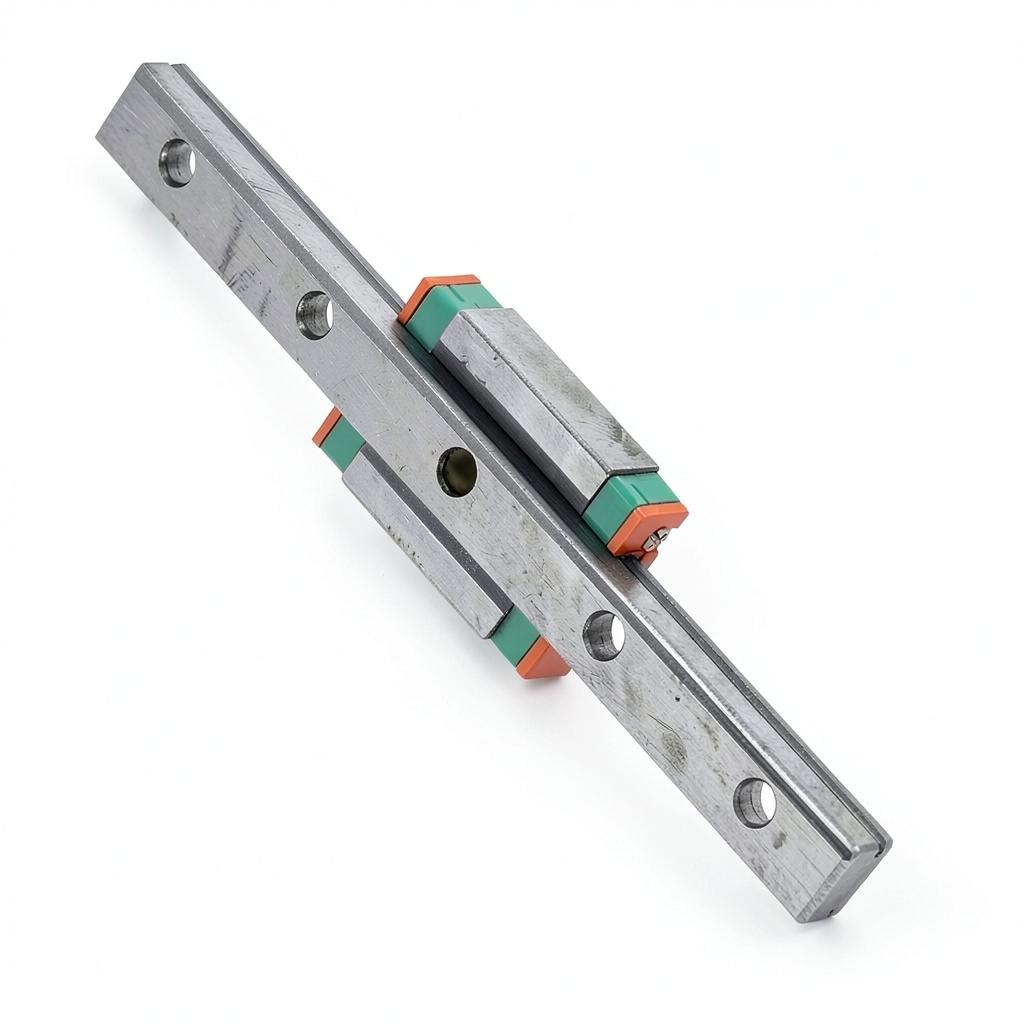

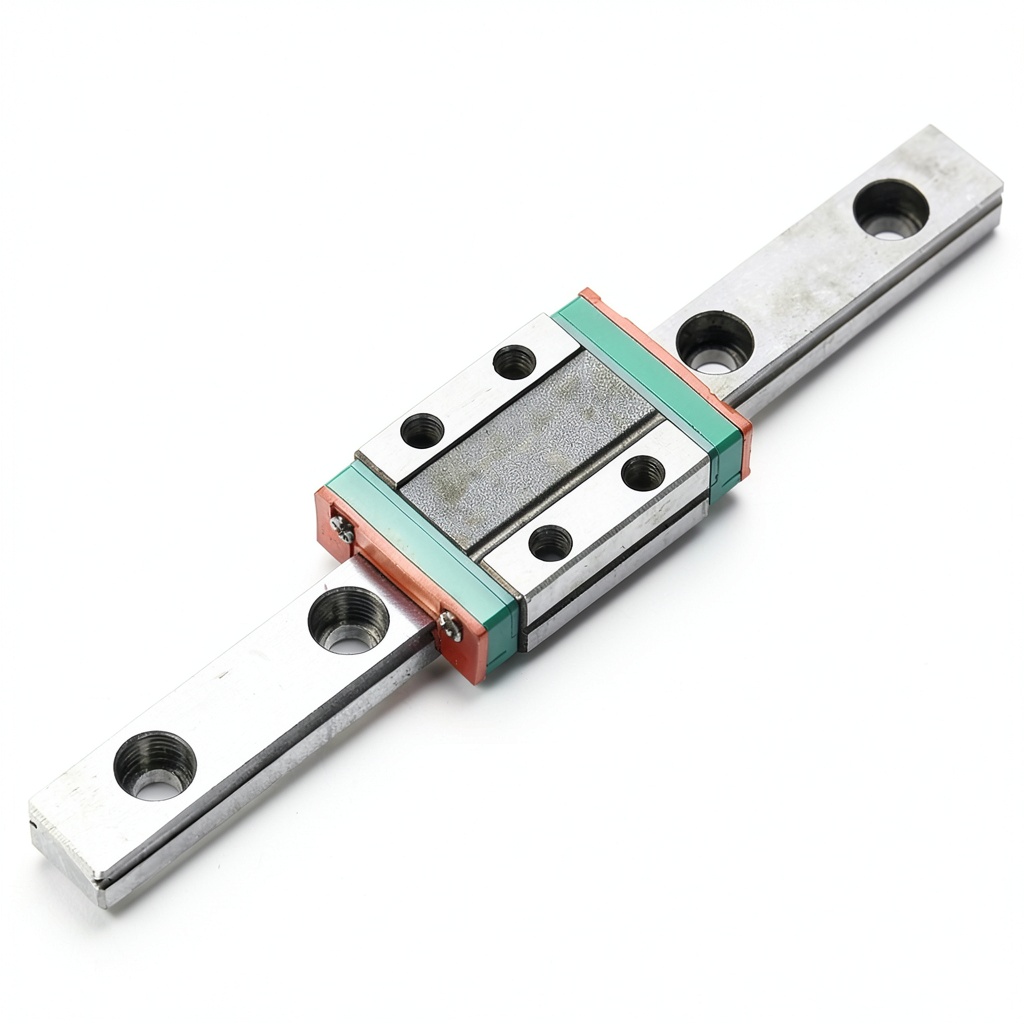

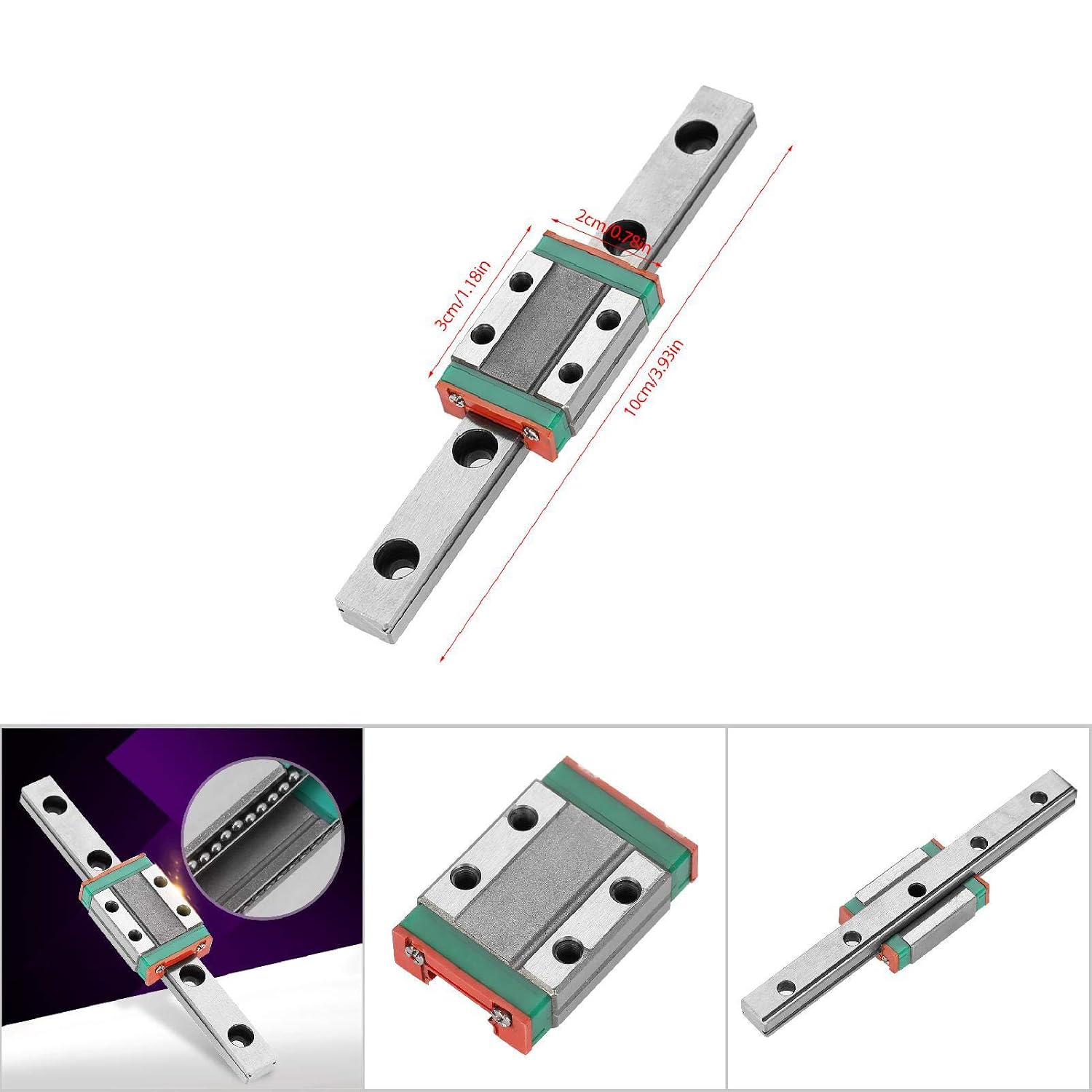

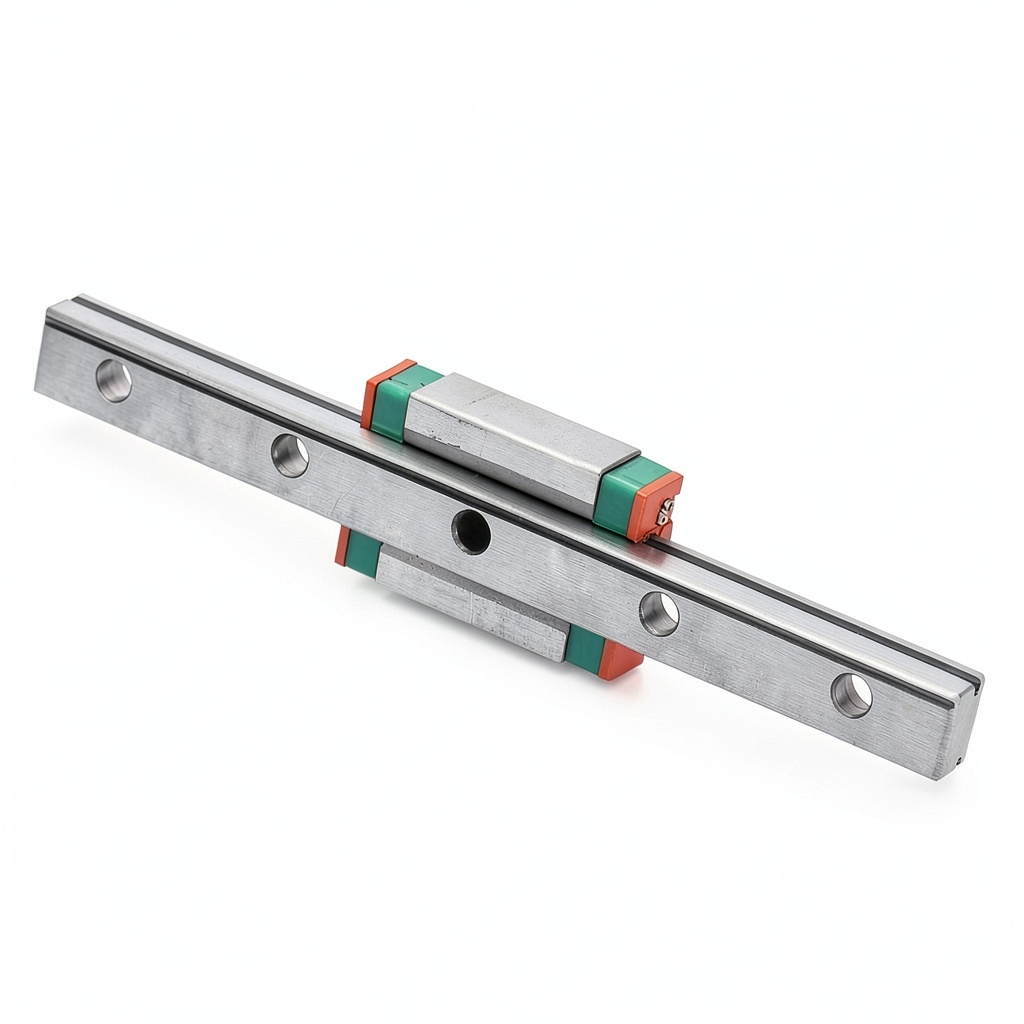

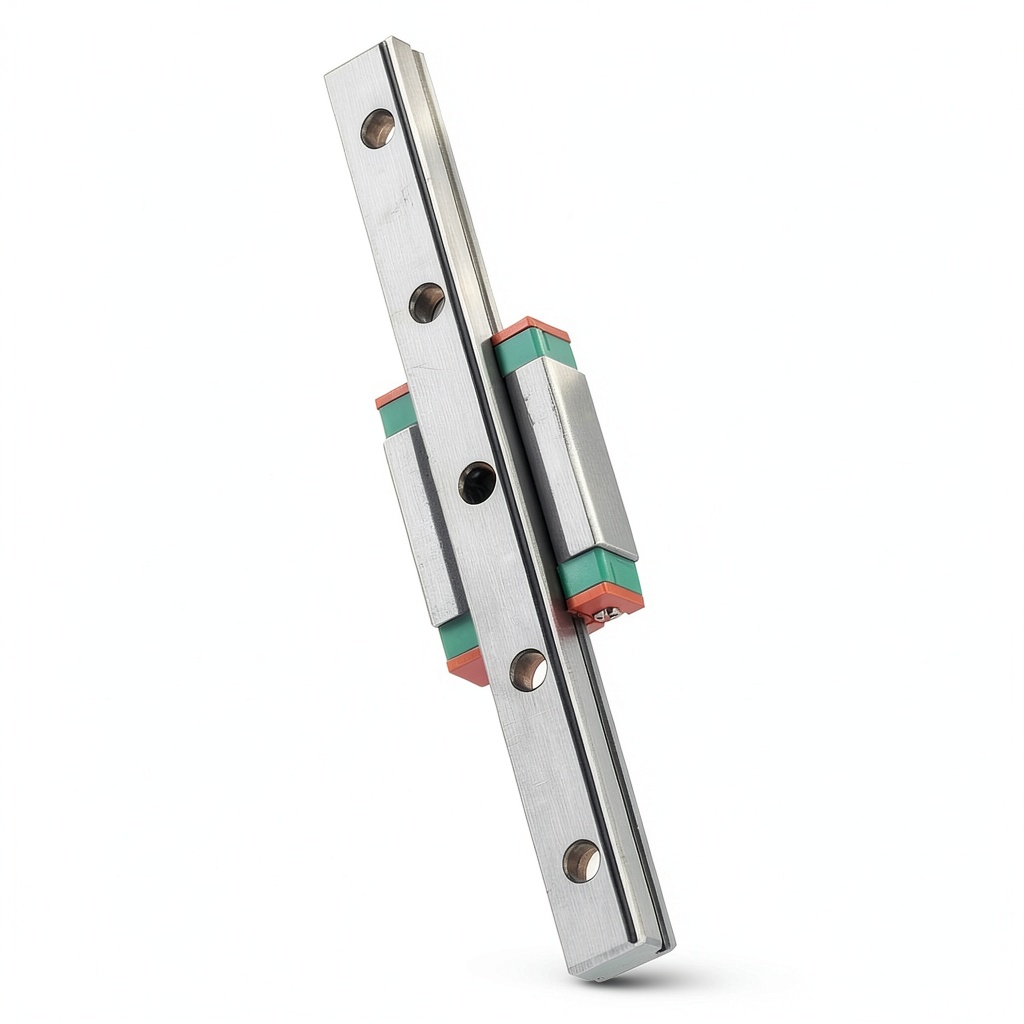

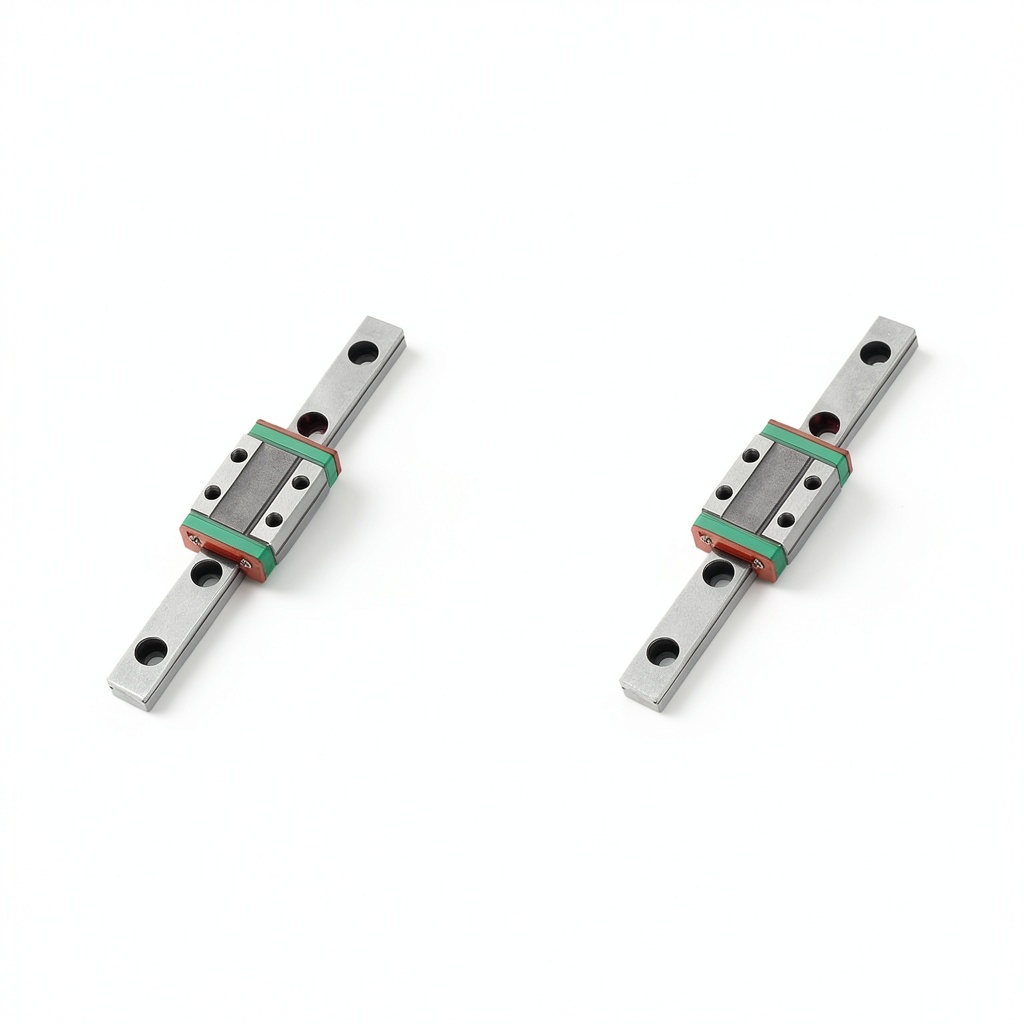

The WALFRONT Linear Rail Guide slide block is engineered to deliver high‑precision linear motion in a compact form factor. Featuring a 9mm wide steel bearing, the block provides a smooth, low‑friction interface that can handle continuous operation in demanding environments. The design incorporates a built‑in oil inlet, allowing users to apply lubrication directly to the bearing surface without disassembly, which extends service life and reduces maintenance downtime. A 4‑point load bearing architecture distributes forces evenly across the rail, ensuring stability and accuracy even when subjected to multidirectional loads. The integrated ball retainer system enables quick interchangeability of ball elements, making it possible to adapt the assembly to varying load capacities while maintaining tight tolerances. Constructed from hardened steel, the components resist wear, corrosion, and deformation, delivering reliable performance over extended periods. The overall dimensions—approximately 4.72 x 1.57 x 1.57 inches and a weight of just 4.09 ounces—make the unit ideal for space‑constrained applications where weight and size are critical considerations.
Usage
This slide block is suited for a broad range of industrial and scientific equipment that requires precise linear positioning. In automated manufacturing lines, it can be incorporated into robotic arms, conveyor systems, and pick‑and‑place machines to provide reliable motion control with minimal backlash. Precision measuring tools such as coordinate measuring machines (CMMs) and optical inspection rigs benefit from the block’s high repeatability, allowing technicians to achieve micron‑level accuracy in dimensional verification. Small‑scale CNC machines, 3‑D printers, and prototype development rigs also find value in the compact size and lightweight nature of the component, enabling designers to build portable or tabletop devices without sacrificing performance. The easy lubrication feature simplifies routine maintenance for field technicians, while the ball retainer’s interchangeability supports rapid reconfiguration for different load scenarios. Overall, the product excels in environments where space is limited, precision is paramount, and reliability cannot be compromised.
Why Choose Us
Choosing the WALFRONT Linear Rail Guide slide block means selecting a solution backed by rigorous quality assurance processes and a commitment to engineering excellence. Each unit undergoes a multi‑stage inspection that includes dimensional verification, hardness testing, and functional load trials to confirm compliance with industry standards. The use of premium hardened steel ensures that the bearing surfaces maintain their geometry under repeated stress, reducing the risk of premature wear. Our design philosophy emphasizes modularity; the ball retainer system allows end‑users to replace or upgrade ball components without needing specialized tools, thereby minimizing downtime and inventory costs. Additionally, the integrated oil inlet reduces the complexity of lubrication procedures, enabling faster servicing and longer intervals between maintenance cycles. WALFRONT provides comprehensive technical support, including detailed installation guides, troubleshooting resources, and direct access to engineering specialists who can assist with custom integration challenges. This combination of durable materials, thoughtful design, and responsive after‑sales service positions the product as a reliable choice for engineers seeking long‑term performance in precision motion applications.
Key Features
- Compact 9mm steel bearing delivers smooth, low‑friction motion in tight spaces
- Built‑in oil inlet simplifies lubrication, extending bearing life and reducing maintenance effort
- 4‑point load design provides balanced support for multidirectional forces, enhancing accuracy

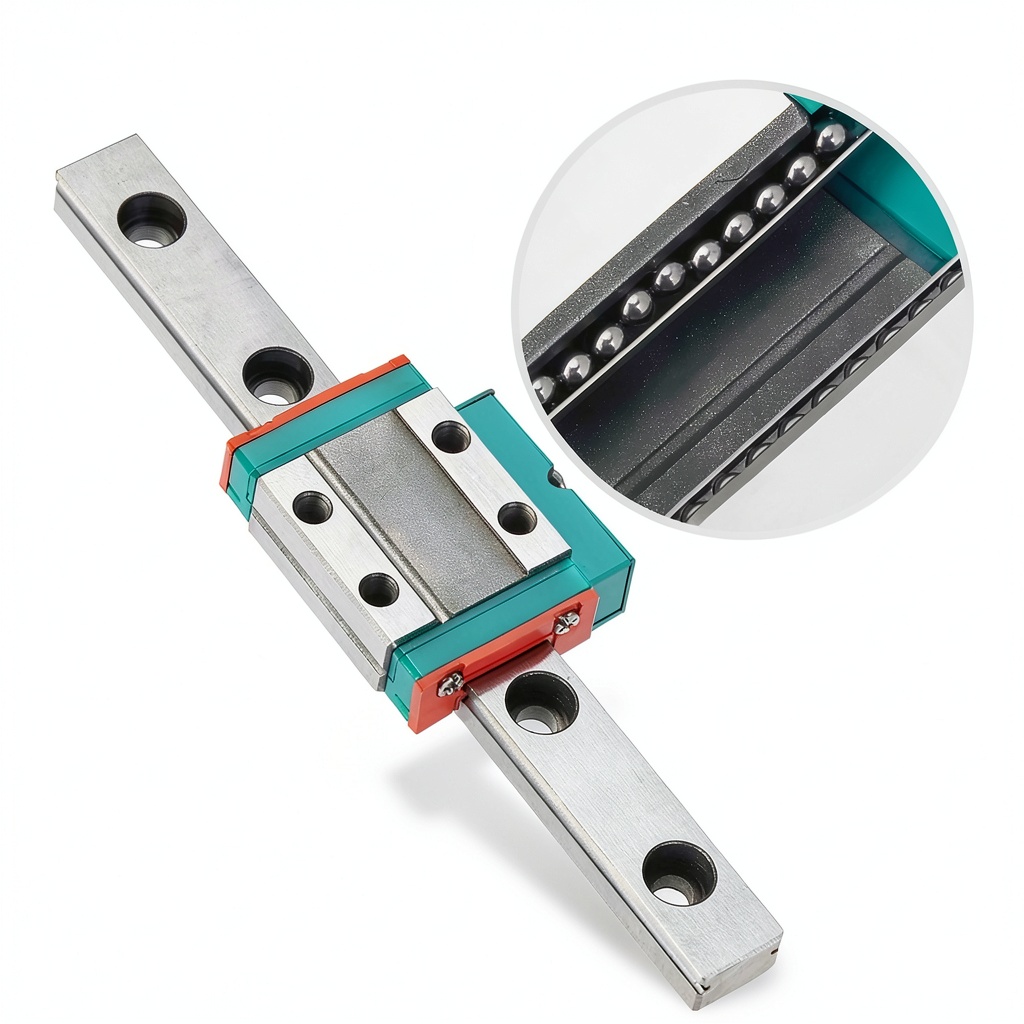

- Interchangeable ball retainer allows quick adaptation to different load requirements without disassembly
- Dedicated technical support and after‑sales service ensure reliable integration and long‑term satisfaction
FAQ
What types of machines can benefit from this slide block?
The slide block is ideal for any equipment that requires precise linear movement, including robotic arms, CNC machines, 3‑D printers, coordinate measuring machines, and small‑scale automation tools. Its compact size makes it especially useful for portable or space‑constrained devices.
How often should the bearing be lubricated?
Lubrication frequency depends on operating conditions such as load, speed, and environmental factors. For typical industrial use, applying lubricant through the built‑in oil inlet every 3‑6 months is sufficient. In harsher environments, more frequent maintenance may be required.
Can the ball retainer be replaced with different ball sizes?
Yes. The ball retainer is designed for easy interchangeability, allowing users to select ball sizes that match specific load capacities. This flexibility enables the slide block to be customized for a wide range of applications without needing a complete redesign.
Is the product compatible with standard linear rail profiles?
The slide block conforms to common linear rail dimensions used in the industry, making it compatible with most standard rail profiles. However, it is recommended to verify the rail’s cross‑section dimensions against the product specifications to ensure a proper fit.
What warranty and support options are available?
WALFRONT offers a one‑year limited warranty covering manufacturing defects. In addition, customers receive access to technical documentation, installation videos, and a dedicated support line staffed by engineers who can assist with integration, troubleshooting, and performance optimization.
